Howo Garbage Truck – Compressor & Hook Type
Features：
The SINOTRUK HOWO Packer Garbage Truck produced by CSCTRUCK serves the specialized purpose of efficiently gathering urban residents’ household waste and other compressible refuse. Comprising a sealed garbage compartment, a hydraulic system, and an operational interface, this vehicle operates as a cohesive unit. Its design ensures complete containment throughout the processes of self-compression, self-dumping, and compression, channeling all wastewater into a dedicated sewage tank. Notably, the pivotal components of packer garbage trucks are sourced as imports, boasting superior performance metrics such as high-pressure capabilities, impeccable sealing mechanisms, ease of operation, safety provisions, and labor-saving functionalities. This amalgamation of features not only guarantees operational efficiency but also underscores the packer garbage truck’s capacity to navigate the demands of urban waste management with precision and reliability.
FEATURES：
1. The hydraulic system’s key components, including the control valve, oil cylinder, and connecting pipeline, boast advanced design, dependable performance, user-friendly operation, and easy maintenance.
2. Employing a cutting-edge electronic control system, featuring an imported PLC (Programmable Logic Controller) for integrated control alongside manual operation.
3. Enhanced with a back pressure valve, the push plate control valve facilitates 2-way compression of waste. Automatically adjusting the garbage accommodation space, the push plate moves to the front of the body, ensuring high loading efficiency.
4. An optional rear monitoring system is available for seamless visual monitoring during cab loading and unloading operations.
5. Equipped with a dedicated emergency brake button, the garbage pressing mechanism halts in any state or position, prioritizing operator and equipment safety.
6. Users have the flexibility to select from various collection mechanisms tailored to different waste collection methods.
|
|||
| Model Number | QDZ5251ZYSA | ||
| Chassis Number | ZZ1257N4341W | ||
| Driving type | 6*4 | ||
| Rated Loading Weight(kg) | 10000 | ||
| Kerb Weight(kg) | 15000 | ||
| Total Mass(kg) | 25000 | ||
| Overall dimesion(L*W*H)mm | 9980*2500*3650 | ||
| Min. Turning Circle (m) | 21.6 | ||
| Max. Speed (Km/h) | 90 | ||
| Fuel Consumption(L/100km) | 29 | ||
| Engine | SINOTRUK Brand,WD615.47,EURO-2 | ||
| Horse Power(hp/r/min) | 371/2200 | ||
| Volume of the Body(m3) | 18.5 | ||
| Volume of the Filler(m3) | 2.5 | ||
| Time of one Loading Cycle(s) | <25 | ||
| Time of one Unloading Cycle(s) | <40 | ||
| Max Brake Crase Pressure(kgf) | >35000 | ||
| Transmission | HW19710, 10 forward and 2 reverse | ||
| Clutch | Dia.430mm, Hydraulically operating with air assitance | ||
| Front Axle | HF7 | ||
| Rear Axle | ST16 | ||
| Steering | ZF8098 | ||
| Brake | Dual circuit compressed air service bake, spring energy parking brake, engine exhaust auxiliary brake, ABS for option | ||
| Tyre | 12.00R20 Radial tyre | ||
Performance
Howo dump truck is as versatile as your day to day challenges on the construction and mining site. Thanks to Sinotruk engine, it brings even more transport capacity and safety to your construction site. Making it a reliable and efficient partner for your work.
Safe and Reliable
More efficient and economical 2.0T turbocharger engine. McPherson independent front suspension / High-strength rear suspension with torsion beam Ultra-high-strength cage body, Reinforced boron
Comfortable driving
Bosch 9.3 ESP single tube hydraulic shock absorberFront and rear independent suspension
Exclusive luxury
Luxury interior upholstery in leather in contrasting colors, ergonomic seats. 10.25-inch waterfall high-definition large screen, intelligent car connection.
Gallery：

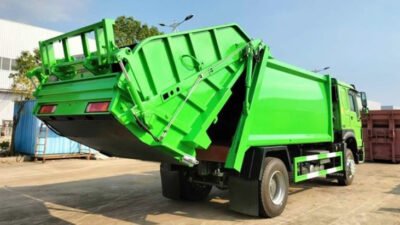

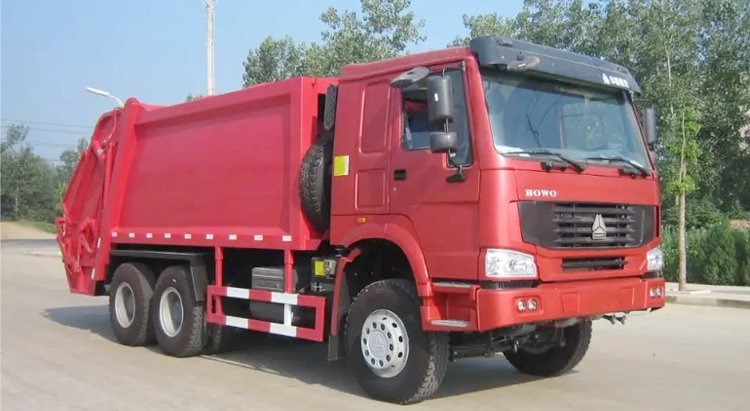

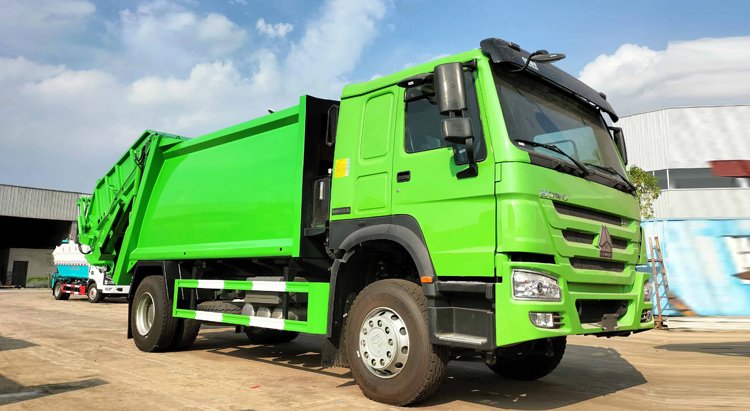

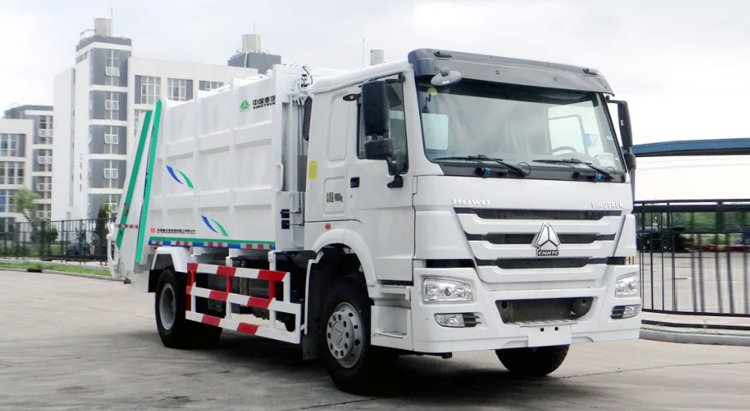

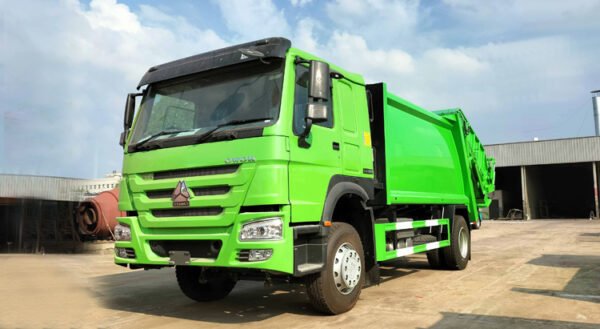

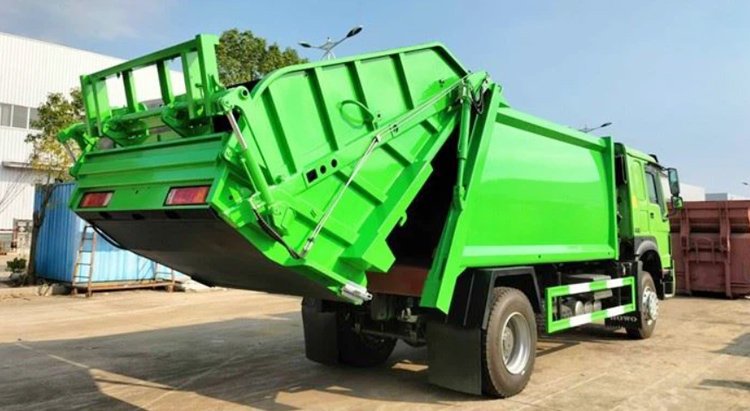

Sinotruck Howo Garbage Truck is the particular dump truck equipped with a hydraulic lifting mechanism and tail packer to compact the garbage, load, transfer, and dump the trash automatically.
