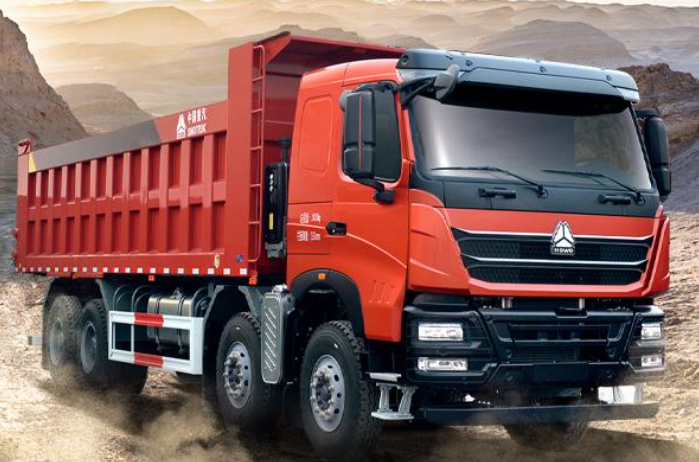

HOWO TH7 dump truck features heavy-duty chassis, ideal for harsh mining and highway working conditions.
| Model | HOWO TH7 Dump Truck (Highway & Mining) |
| Vehicle model | ZZ3317V486HF1 |
| Motor model | WP13.550E62 |
| Motor Net power (kw) / speed (r/min) | 405/1900 |
| Motor Maximum torque (Nm) / speed (r/min) | 2550/950-1400 |
| Gearbox | HW25712XSCJ+HW50 direct connection power take-off |
| Clutch (mm) | φ |
| Rear axle model | MCP23ZG |
| Rear axle speed ratio | 5.92 |
| Fuel tank (L) | 600 |
| Frame section (mm) | 28+8+8/316 monolithic support plate |
| Suspension (front spring rear spring) | Front and rear super strong multi-plate springs (11/11/12) |
| tyre | 12.00R20 (Mixed Pattern) |
| Engine model | WP13.550E62 |
| Shape (mm) | 11800,11940,11610,11710×2520, 2550×3490,3635,3850,3980 |
| Wheelbase (mm) | 4825 |
| Front overhang Rear overhang (mm) | 1950/1350 |
| Maximum total mass (Kg) | 31000 |
| Rated number of passengers (persons) | 2 |
